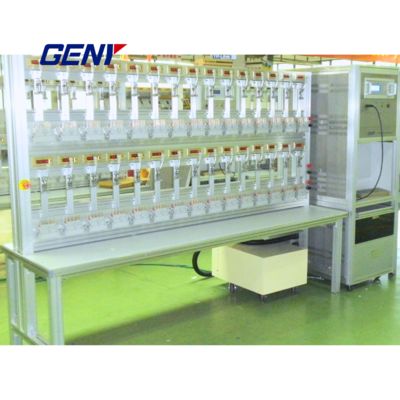

Flexible High-Precision Modular Design Energy Meter Testing Equipment for Accurate Power Measurement

Flexible High-Precision Modular Design Energy Meter Testing Equipment for Accurate Power Measurement

ব্র্যান্ড নাম:	GENY
মডেল নম্বর:	YC-1891D
MOQ:	1 পিসি
মূল্য:	আলোচনা সাপেক্ষে
অর্থ প্রদানের শর্তাবলী:	এল/সি, টি/টি, ডি/পি
সরবরাহের ক্ষমতা:	100/বছর

বিস্তারিত তথ্য

পণ্যের বর্ণনা

বিস্তারিত তথ্য

উৎপত্তি স্থল:

চীন

সাক্ষ্যদান:

ISO, CE

টেস্ট ভোল্টেজ আউটপুট (ফেজ-নিরপেক্ষ):

24 ভি - 300 ভি

বর্তমান আউটপুট শক্তি:

1500VA

ফ্রিকোয়েন্সি রেঞ্জ:

৪৫ হার্জ ∙ ৬৫ হার্জ

ভোল্টেজ আউটপুট শক্তি:

2000va

প্যাকেজিং বিবরণ:

পাতলা পাতলা কাঠ

যোগানের ক্ষমতা:

100/বছর

বিশেষভাবে তুলে ধরা:

Flexible Energy Meter Testing Equipment

High-Precision Meter Test Equipment

Modular Design Stationary Meter Test Equipment

পণ্যের বর্ণনা

Flexible Energy Meter Testing Equipment

GENY's Meter Test Equipment utilizes advanced electronic measurement technology and a modular design. By integrating differential reference standards with high-precision power amplifiers, our systems deliver accurate and reliable performance.

Ideal Applications

Electric energy meter manufacturers
Electric power utilities
Metrology laboratories
Measurement and quality inspection departments
Industrial factories and enterprises

Our solutions are designed to meet the demanding requirements of modern power measurement and testing environments.

Technical Parameters

Power Supply

Voltage	3×230/398V±10%
Frequency	50/60Hz±2Hz
Power capacity	> 6kVA
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Power Source

Voltage

Test voltage output (Phase-Neutral)	24V - 300V
Power of the voltage output	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Current

Test current output	1mA - 120A
Power of the current output	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Phase angle

Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°

Frequency

Range	45Hz - 65Hz
Resolution	0.01Hz

MSVT

Number of secondary	50
Voltage range	300V
Ratio	1:1
Primary to secondary ratio error	0.25%
Secondary to secondary ratio error	0.02%
Secondary to secondary Phase error	0.02°
Frequency range	45Hz - 65Hz
Output power (per winding)	15VA
