স্টেশনারি মিটার টেস্ট বেঞ্চ
Created with Pixso.

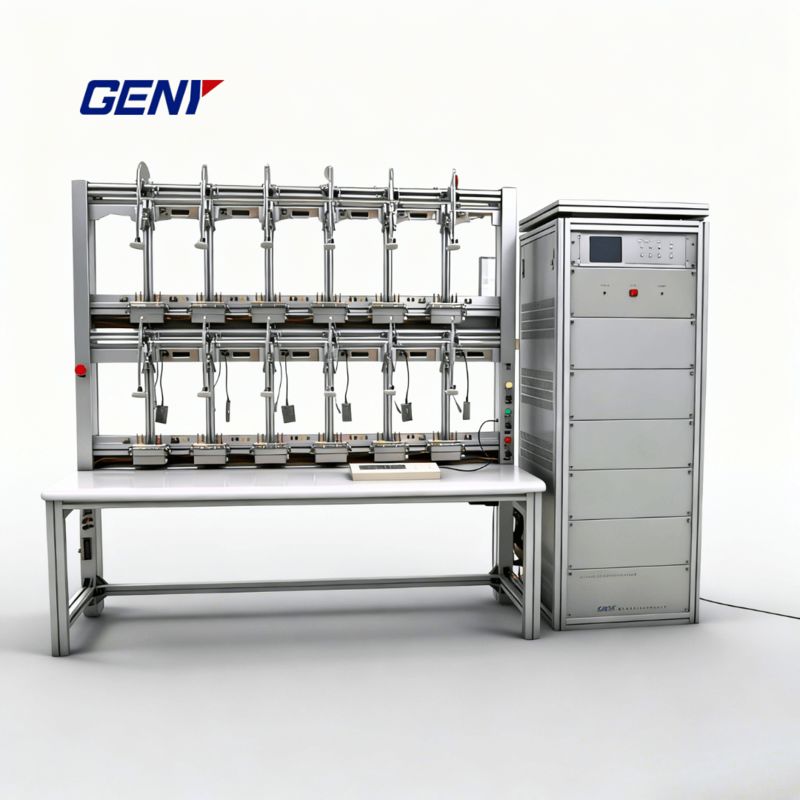

IEC-Compliant Automatic Meter Test Bench for Energy Meters

IEC-Compliant Automatic Meter Test Bench for Energy Meters

ব্র্যান্ড নাম: GENY
মডেল নম্বর: YC1891/3D
MOQ: 1 পিসিএস
মূল্য: আলোচনা সাপেক্ষে
অর্থ প্রদানের শর্তাবলী: এল/সি, টি/টি, ডি/পি
সরবরাহের ক্ষমতা: প্রতি মাসে 30 পিসি
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
ISO, CE
নির্ভুলতা:
০.০৫ / ০.০২/ ০.০১%
ভোল্টেজ আউটপুটের শক্তি:
সর্বোচ্চ 3*2000VA
বর্তমান আউটপুট শক্তি:
সর্বোচ্চ 3*2800VA
পরিবেষ্টিত তাপমাত্রা:
-10°C -- +40°C
প্যাকেজিং বিবরণ:
প্লাইউড কেস
যোগানের ক্ষমতা:
প্রতি মাসে 30 পিসি
বিশেষভাবে তুলে ধরা:

IEC-compliant automatic meter test bench

,

stationary energy meter test bench

,

automatic meter test bench with warranty

পণ্যের বর্ণনা
IEC-Compliant Automatic Meter Test Bench for Energy Meters

Our advanced energy meter test system utilizes state-of-the-art electronic measurement technology and a modular design, resulting in a fully automatic calibration solution. The system is fully compliant with the IEC 60736 standard and supports high-efficiency, multi-position testing for electric energy meters.
Designed for versatility, it can be seamlessly integrated with a variety of reference standards and power sources. This flexibility allows us to meet the specific requirements of a wide range of clients, including energy meter manufacturers, power utility companies, governmental metrology institutes, and calibration laboratories.

Key Features
  • IEC-Compliant Performance: Built strictly to IEC standards, supporting full testing coverage for active/reactive/apparent energy (all 4 quadrants) -- critical for global meter certification.
  • Durable Aluminum Alloy Construction: Lightweight yet robust, with corrosion resistance to ensure long-term stability in lab/industrial environments.
  • Fully Automatic Testing Capabilities:
    • Accuracy testing (4-quadrant, IEC-aligned)
    • Creeping (no-load) & starting current tests
    • Dial/register verification
    • Influence quantity testing (voltage, frequency, harmonic distortion)
    • Error repeatability analysis
    • Sub/odd harmonic testing (up to 41st order, IEC-standard)
    • Tamper & fraud monitoring
    • Simultaneous multi-position meter testing (high throughput)
  • Wide Voltage/Current Range: Supports up to 480V & 200A -- compatible with most global meter specifications.
  • Built-In Protection Functions: Overload, voltage short-circuit, and current open-circuit safeguards to protect both the test bench and DUTs.
  • User-Friendly Software: Intuitive interface for Windows XP/7/8/10+; includes dedicated modules for all energy meter types (no extra software required).
  • Flexible Data Management: Stored test data can be exported in multiple formats (CSV, PDF, etc.) for seamless integration with third-party tools.
IEC-Compliant Automatic Meter Test Bench for Energy Meters 0IEC-Compliant Automatic Meter Test Bench for Energy Meters 1IEC-Compliant Automatic Meter Test Bench for Energy Meters 2
